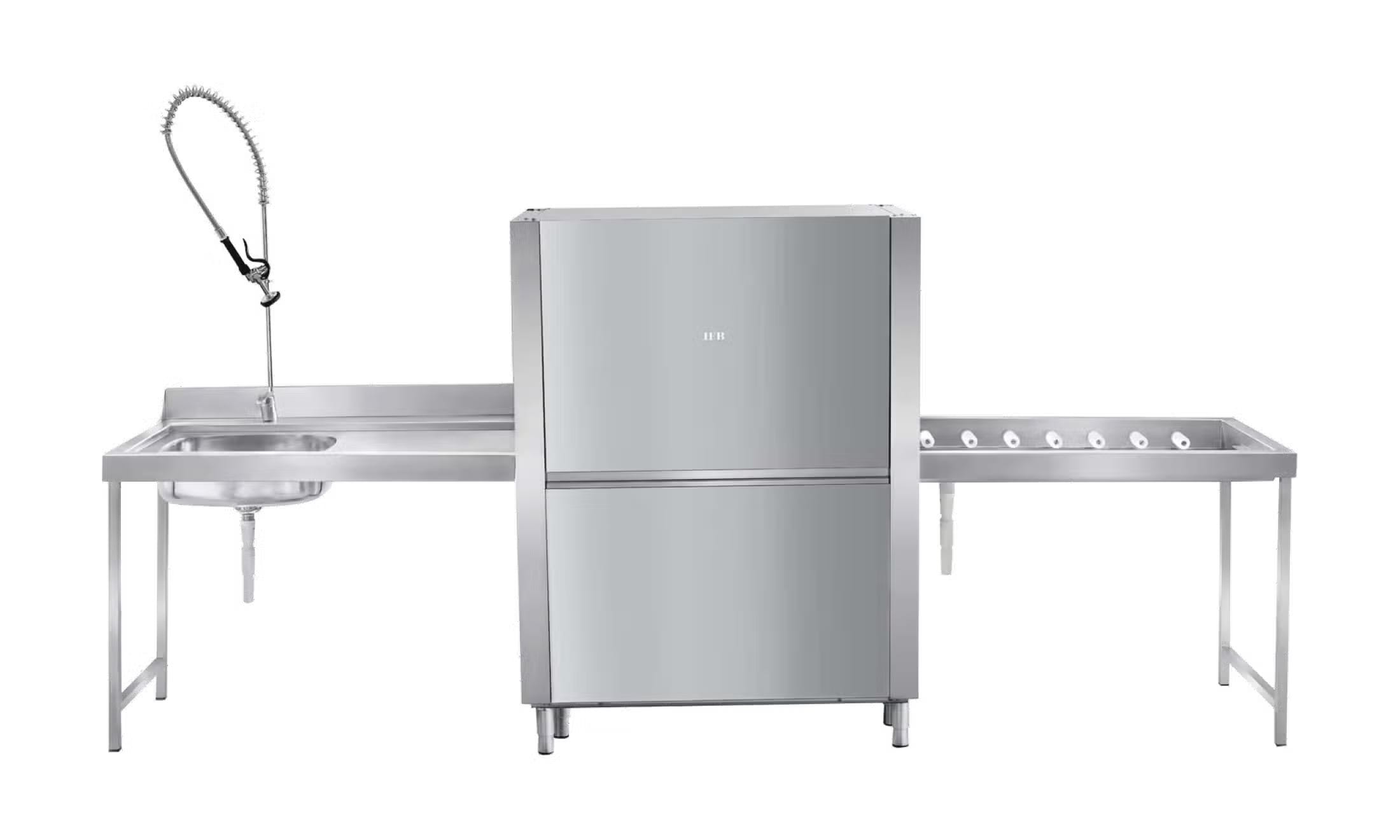

IFB Rack Conveyor Dishwasher Duo Flow Wash Pumps

Original price was: ₹700,000.00.Current price is: ₹695,000.00.

Product Specifications:

Brand: IFB
Model: RC 150 Plus
Net Weight: 202 kgs
Dimensions (W x D x H – cm): 115 x 77 x 160cm
Rack Size (cm): 50 x 50
Included Components: Detergent Pump, Rinse aid Pump,Wty card,Power cable,Installation & User Manual ,Electrical ckt diagram ,Installation Lay out,Rat mesh,Water inlet hose, Drain Hose, Glass basket,Dish basket , Foot leg for leveling
Net Quantity: 1 Unit
Output with 50˚C Water Temperature: 60-120
General Construction: Stainless Steel
Door Construction: Stainless Steel
Water Consumption (L/Cycle): 160
With 15*C water feed (kW): 28.5
With 50*C water feed (kW): 22
With 50*C water feed (kW) and heat recovery system: 23.5
Electric Connection (V/Hz/ph/N): 400/50/3/N
Required Electric Power (Kw/Amp): 28.5/50
Required Electric Power with Dryer (kW/Amp): 35/63
Required Water Pressure (Bar): 1.5 – 4
Required Water TDS: 40 to 100ppm, Conductivity lower than 300 Micro Siemens
Rinse Temperature (°C): 80
Wash Temperature (°C): 60
Length (mm): 1150
Tank Volume (Ltr): 70

Note

Images shown are for representation only. The actual product may vary.
Prices are indicative. To receive the best current price and confirm product availability, please select the required quantity, add to quote, and proceed to checkout after filling in your details. Our team will contact you with the latest information.
GST will be charged extra.
Freight and installation charges are additional, as applicable.
Wooden packaging will incur extra charges.
Delivery dates will be communicated prior to order confirmation.
Warranty terms are provided solely by the brand/OEM and may be revised from time to time. The applicable warranty will be shared with you prior to order confirmation.
At Lighthouse, we are committed to supporting you throughout your warranty experience. While warranty services are provided directly by the respective brand/OEM, our team will gladly assist you in every possible way to help facilitate the process. Please note, however, that Lighthouse is not responsible for the warranty terms, conditions, or service outcomes determined by the brand/OEM.
Specifications, features, and colors are subject to change without prior notice, owing to continuous product improvements.

Category: Dishwashers

Description
Brand

Description:

2 MINUTE WASH AND DRY:

Cut wait times to just 2 minutes with IFB industrial dishwashers. Powerful wash pumps, strategically positioned spray arms and high speed wash cycles clean thoroghly, and fast. High-capacity racks accomodate large loads. Dishes come out dry and ready to use. Your service flows uninterrupted even during rush hours.

Features:

ENGINEERED FOR SUSTAINABILITY

An automated dosing system that dispenses the exact amount of detergent and rinse-aid needed. Insulated tanks that minimize heat loss and reducing the energy required to maintain optimum wash temperatures. Wash cycles that use the minimum amount of water necessary for a thorough clean. IFB Indutrial dishwashers are engineered to save – detergent power and water.

DUOFLOW WASH PUMPS

DuoFlow wash pump with one inlet and two outlets – as opposed to traditional pumps with one inlet, one outlet and T or Y shaped flow divertors – ensure that there is no loss of water pressure while delivering water to the wash arms. It delivers 30% more cleaning power compared to the traditional pumps.

360° SPRAY ARMS

Two composite wash arms—one at the top and one at the bottom—with strategically positioned nozzles, spray water from multiple angles for a deep, thorough wash. The lightweight, durable composite material resists corrosion, high temperatures, and chemical damage.

DIGITAL CONTROL PANEL

Gives you complete control over the wash process. The display provides clear information on wash cycle progress, temperature and potential errors – for easy monitoring. The intuitive, user – friendly interface simplifies operations, enabling operators to take control with minimal training.

PRODOSE SYSTEM

The ProDose system automatically dispenses the exact amount of detergent and rinse aid, elminating waste, reducing costs on chemicals, and manual handling.
